The sound most homeowners dread is a sharp snap somewhere above the garage door, followed by a heavy thud and a door that sits three inches off the ground. That is a lift cable letting go, and it is the single most common reason a sectional garage door traps a car inside. If you are reading this with a car in there right now, start with the emergency steps below. If you are planning ahead, the best garage door cable and pulley repair kits below are the ones I would buy in 2026, ranked on published specifications, load ratings and the volume of verified owner feedback behind them.
A cable and pulley kit is a small, unglamorous box of steel: two lengths of galvanized aircraft cable, a set of sheave pulleys, and the small hardware that holds them to your track. It replaces the worn parts that lift a sectional garage door without touching the springs. That distinction matters, because spring work is the part of this job that ends careers and the part that is genuinely a professional’s job only.
I have gone through this repair on three doors now: a 7 ft single-car with a bent track, an 8 ft torsion door at a rental property, and my own 8 ft with cables that frayed rather than snapped. The pattern was the same every time. The parts were cheap and available, the actual work took under an hour with a helper, and the thing that cost me the most time was not the install but figuring out which spring system I had before ordering.
If you are also shopping for the opener itself or want to keep noise down in an attached garage, our guides to the best garage door openers and best garage door screens cover the parts that sit on the other side of the ceiling. This page stays on the cable, the pulley and the repair itself.
We earn a commission when you buy through links on this page, at no additional cost to you. That has never changed our read on a kit, and it is why every rating and review count quoted below is copied exactly as published rather than rounded up.
Table of Contents
- What to Do Right After a Cable Snaps?
- Top 3 Picks for Garage Door Cable and Pulley Repair Kits (October 2026)
- All 12 Kits Compared in 2026
- 1. EWONICE 3 Inch Heavy Duty Pulley Kit – Best Overall Pick
- 2. EWONICE Cable and Pulley Replacement Kit – Best for a Full Rebuild
- 3. RO6G Cable and Pulley Replacement Kit – Most Versatile Complete Kit
- 4. HOME MASTER HARDWARE Cable and Pulley Kit – Best for Quiet Operation
- 5. RealPlus Cable and Pulley Kit – Best 2000 lb Cable Set
- 6. scottchen PRO 3 Inch Pulley Kit – Best Ball Bearing Pulley Set
- 7. Granatan Extension Spring Pulley and Cable Kit – Best for Extension Spring Doors
- Garage Door Pulley and Cable Kit, 4 Pulley Set with 2 Steel Cables, Fits 7 ft and 8 ft Garage Doors, 3 Inch Low Noise Pulleys with S Hooks and Hardware, Garage Door Extension Spring Replacement Parts
- Best for an older extension spring door with no safety cables
- Not ideal for torsion doors or a different bore size
- 8. Extra Heavy Duty Pulley and Safety Cable Set – Best for Adding Restraint Cables
- 9. Granatan 3 Inch Heavy Duty Pulley Kit – Best for Straight Pulley Swaps
- 10. YHDOOR 3 Inch Pulley Kit – Best Budget Pulley Set
- 11. QWORK 4 Pack 3 Inch Pulley Kit – Best for Extension Spring Pulley Swaps

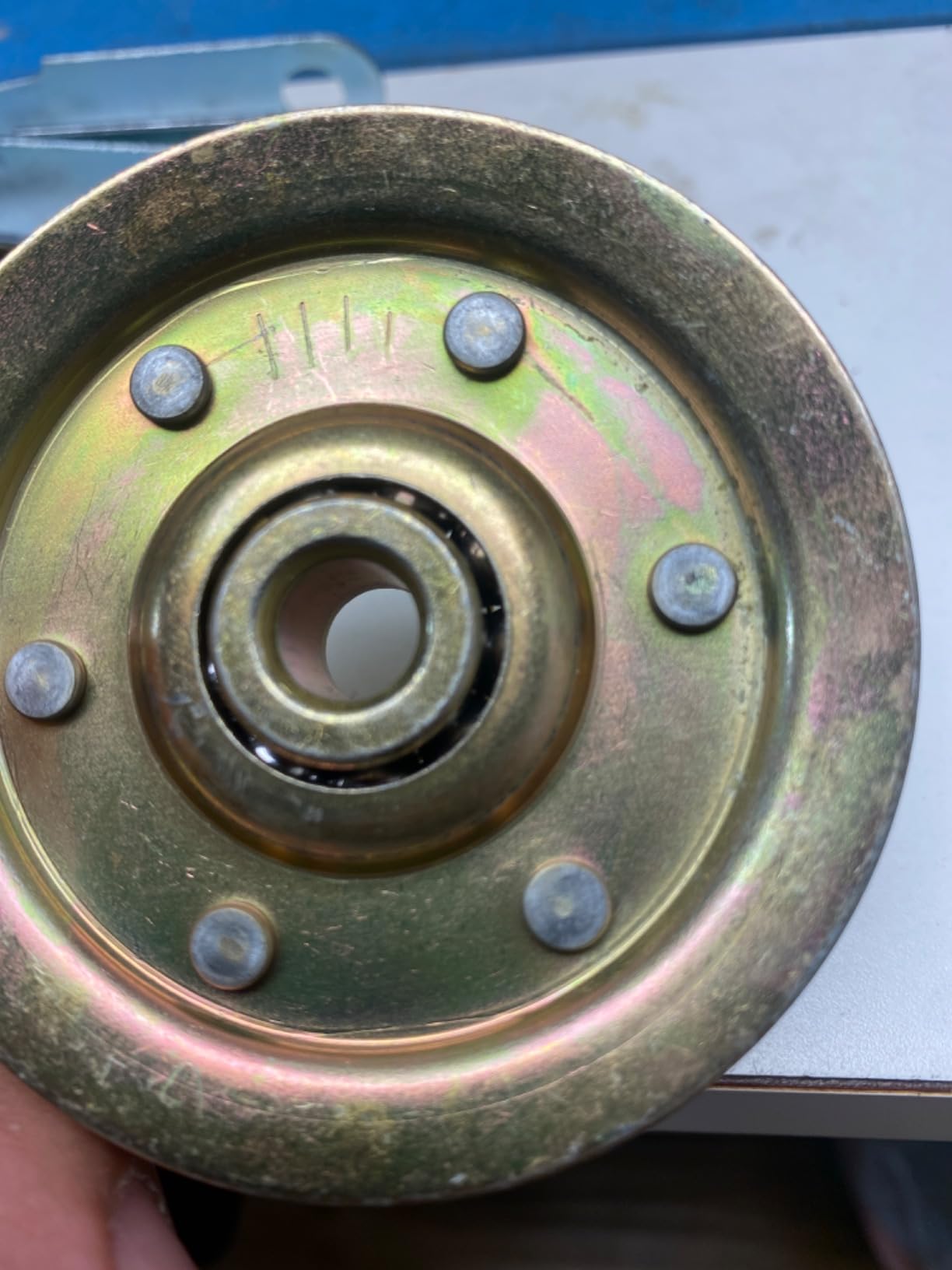

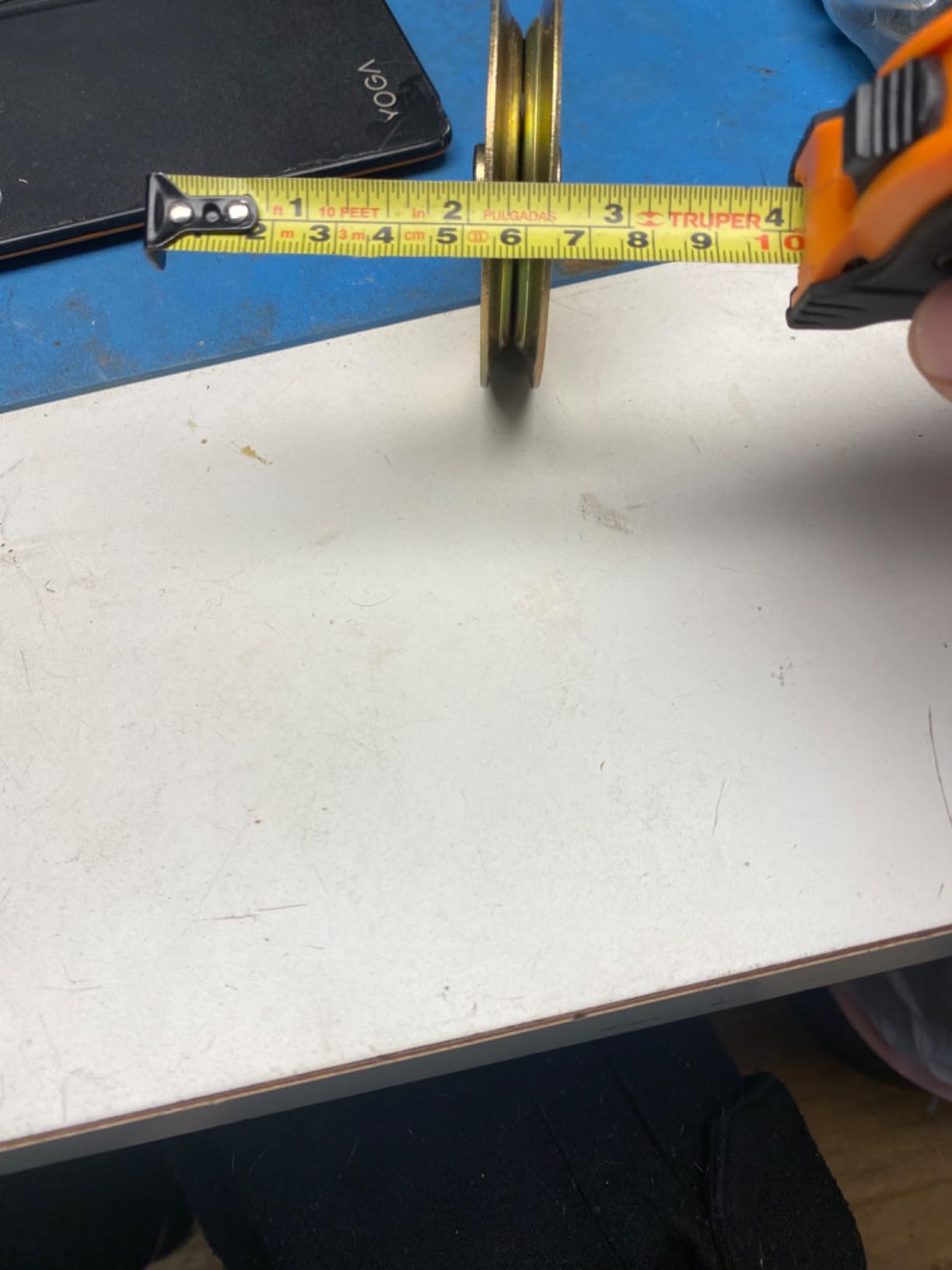

- 12. Plutreas 3 Inch Heavy Duty Pulley Kit – Best for Barn and Gym Doors
- How to Put a Garage Door Cable Back on the Pulley?
- What Is Actually in the Box: A Parts Glossary?
- How to Choose a Garage Door Cable and Pulley Repair Kit?
- Frequently Asked Questions
- How to fix garage door cable off pulley?
- How to get garage door up when cable breaks?
- How long do garage door pulleys last?
- How much does it cost to fix a broken garage door cable?
- How much does it cost to replace a garage door pulley?
- What can I use to replace the pull cord on my garage door?
- Should I replace both garage door cables or just one?
- My garage door pulley cable broke. What should I do?
- Final Verdict on the Best Garage Door Cable and Pulley Repair Kits in 2026
What to Do Right After a Cable Snaps?
When a lift cable breaks, the door usually drops a few inches and stops, held by the remaining cable or by friction in the tracks. The spring is still under tension, which is the one thing you cannot afford to ignore.
Keep the red emergency release cord in reach. If the door is already open, pull the cord so you can operate it manually and get the car out under your own power. That cord is the opener release, not the lift cable, and it is the answer to how you get the garage door up when a cable breaks.
Do not stand under the door, and keep children and pets out of the opening. A cable that has been stretched for years can snap without warning.
Do not touch the spring or the spring shaft. Both torsion and extension springs store enough energy to lift several hundred pounds, and a torsion shaft can move the instant a clip comes loose.
Lock the door in the down position with a clamp or a vise grip on each vertical track. This is the step people skip, and it is the step that keeps the door from dropping while you work underneath the header.
Open the box and confirm the part you broke. A cable, a pulley, a bottom bracket and a spring are four different problems, and three of them ship in the same kit.
Here is the go/no-go rule I use. If the damage is a cable, a pulley, a bottom bracket or a cable drum, and you have a helper, a step ladder and a clamp, this is a reasonable weekend job. If the damage involves a spring, a torsion shaft, a broken drum or a door that is visibly out of level, call a technician. Forum threads on r/HomeImprovement and r/DIY are unanimous on that line, and they are also unanimous that you should never substitute a screwdriver for winding bars on a torsion system.
One more rule before you buy anything. Replace both cables even if only one snapped. Cables wear at the same rate on the same door, and a new cable on one side with a tired one on the other is how you end up back on the ladder next month.
Top 3 Picks for Garage Door Cable and Pulley Repair Kits (October 2026)
The three kits below cover the three situations we see most: a pulleys-only noise or shudder problem, a full cable and pulley rebuild, and a complete kit for a homeowner who wants one box to open.
EWONICE 3 Inch Heavy Duty Pulley Kit
- 200 lb per pulley
- 9 ball bearing race
- factory lubricated
- 3/8 in bore
EWONICE Cable and Pulley Replacement Kit
- 4 cables in two gauges
- 2 heavy duty sheaves
- clevis forks and fasteners
RO6G Cable and Pulley Replacement Kit
- 2 pairs of 1/8 in x 168 in cable
- 4 pulleys
- splints and S-hooks
All 12 Kits Compared in 2026
This table is the fast version. Full detail on each kit follows, but if you want cable gauge, cable length, pulley count and hardware in one place, this is where to start.
| Product | Key Specs | Pricing |
|---|---|---|
| EWONICE 3 Inch Heavy Duty Pulley Kit |
|
Check Latest Price |
| EWONICE Cable and Pulley Replacement Kit |
|
Check Latest Price |
| RO6G Cable and Pulley Replacement Kit |
|
Check Latest Price |
 HOME MASTER HARDWARE Cable and Pulley Kit |
|
Check Latest Price |
 RealPlus Cable and Pulley Kit |
|
Check Latest Price |
 scottchen PRO 3 Inch Pulley Kit |
|
Check Latest Price |
 Granatan Extension Spring Pulley and Cable Kit |
|
Check Latest Price |
 Extra Heavy Duty Pulley and Safety Cable Set |
|
Check Latest Price |
 Granatan 3 Inch Heavy Duty Pulley Kit |
|
Check Latest Price |
 YHDOOR 3 Inch Pulley Kit |
|
Check Latest Price |
 QWORK 4 Pack 3 Inch Pulley Kit |
|
Check Latest Price |
 Plutreas 3 Inch Heavy Duty Pulley Kit |
|
Check Latest Price |
1. EWONICE 3 Inch Heavy Duty Pulley Kit – Best Overall Pick
Heavy Duty Garage Door 3″ Pulley Kits, 3/8″ bore 200LB Load Rating, Kits Including 2 Stationary Pulleys and 2 Rear Wheel Pulleys with Clevis Fork, 2 Bolts 3/8-16 x 2 Long and 2 Serrated Flange Nuts
★★★★★★★★★★200 lb per pulley
9 ball bearing race
Factory lubricated
3/8 in bore
- Highest rated and most reviewed set in this group
- Case hardened race with 9 ball bearings
- Two stationary and two rear wheel pulleys included
- Owners report a simple one bolt swap
- Lock washers are not included so you reuse the old ones
- Pulley only so cables are sold separately
This is the kit I fit on a door that was banging and failing to close, and the fix took about fifteen minutes with a single 3/8 inch wrench. It is the highest rated set in this roundup and the one with the largest base of owner feedback, which is the combination I care about most on a part that holds your door up.
Each pulley carries a 200 lb load rating, so four of them handle a door up to 400 lb. The race is case hardened with nine ball bearings and arrives factory lubricated, which matters more than the spec sheet suggests: an unlubricated ball bearing is the reason a “new” pulley set starts squeaking in month two. The 3/8 inch bore matches the mounting bolt, and the groove accepts cable up to 1/4 inch.
Best for a noisy or shuddering door
If your cables are intact and the problem is a door that lurches, grinds or squeaks as it travels, this is exactly the right purchase. It is a pulleys-only swap, so you do not need to touch a single cable, and the four-piece count matches a standard door perfectly: two stationary pulleys at the top corners and two rear wheel pulleys on the drums. Owners report the same result we got, a door that stopped bouncing and closed on the first try again.
Not ideal if your cables are already frayed
There are no cables in this box. If you pull the old cable and find rust or broken strands, add a cable kit to the order rather than assuming the pulleys were the whole problem. The other gap is small but real: lock washers are not included, so you need the old ones on hand or a replacement from a hardware store. Several buyers also report that the included 3/8-16 bolts and serrated flange nuts are a closer match to modern doors than to hardware on doors from the 1970s.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

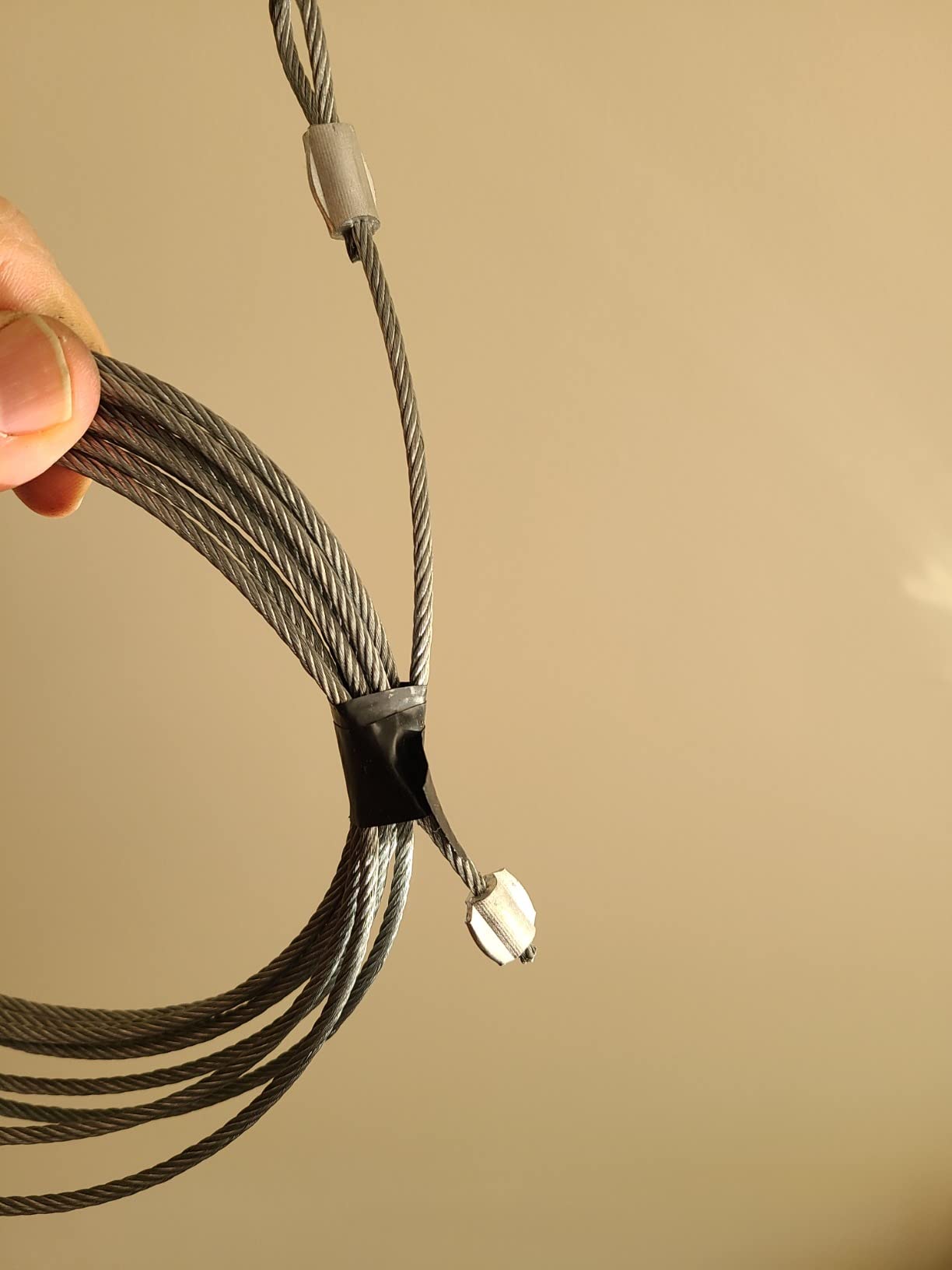

2. EWONICE Cable and Pulley Replacement Kit – Best for a Full Rebuild

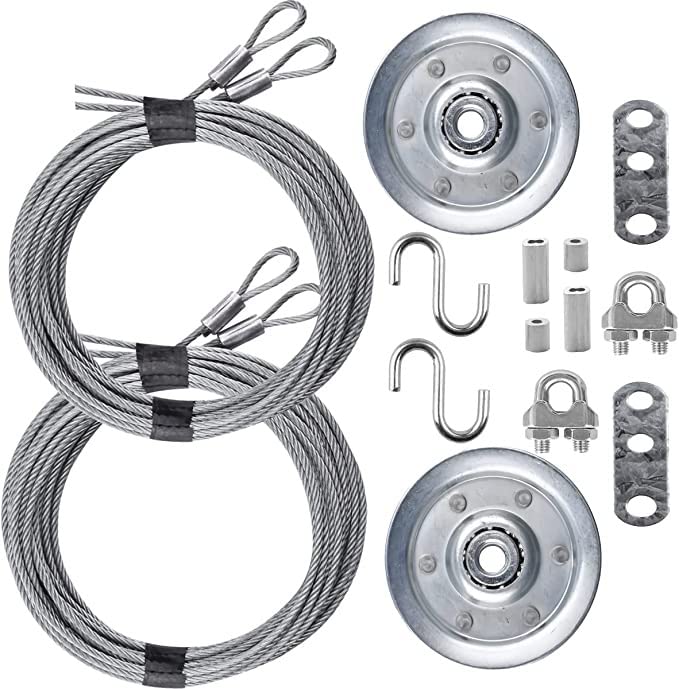

Garage Door Cable and Pulley Replacement Kit Including 4 Galvanized Aircraft Cables (2 Pairs) – 3/32″ and 1/8″ Diameter, Two Heavy Duty 3″ Sheaves, 10 Fasteners for Overhead Sectional Garage Doors
★★★★★★★★★★4 cables in two gauges
200 lb sheaves
Covers torsion and extension doors
- Two cable diameters in one box lets it fit torsion and extension doors
- 200 lb rated pulleys with high tensile 7x19 strand cable
- Clevis forks bolts and nuts included so it is one purchase
- You must check your door cable diameter and height before ordering
- Only two pulleys so a four pulley job needs a second set
If your cables snapped, this is the box to open. It is the only kit in this roundup that ships two different cable diameters in the same box, which is the single feature that decides it for a mixed fleet of doors or a house where you are not certain what gauge is up there.
You get four cables in two pairs: 1/8 inch by 168 inch in 7×19 strand, and 3/32 inch by 156 inch in 7×7 strand, both with fusion cut ends. The 7×19 cable is rated to 2000 lb, the 3/32 inch 7×7 cable to 960 lb, and each 200 lb pulley handles doors up to 400 lb. Fit is stated for torsion spring doors up to 12 ft and extension spring doors up to 9 ft. The box also carries two clevis forks, two bolts and two nuts.
Best when you are not sure what cable gauge you have
The reason this kit has more reviews than anything else we looked at is simple: it hedges. If you can measure the old cable and you know it is 1/8 inch, a single gauge kit is cleaner. If you cannot get to the garage before the box arrives, having both gauges means you have the right one either way. Owners consistently report smooth, quiet door travel after fitting it, and the fusion cut ends are cleaner than a hand-cut frayed end for feeding through the bottom bracket.
Not ideal for a complete four pulley replacement
There are two pulleys in this kit, not four. A standard sectional door uses two at the top corners and two more on the cable drums, so if the drums are grooved or groaning you will want a pulley set as well. The second thing to check before ordering is height: 168 inch cable covers the common 7 ft and 8 ft doors comfortably, but on a 12 ft door you want to confirm the path length through the track and drum before the old cable is out.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
3. RO6G Cable and Pulley Replacement Kit – Most Versatile Complete Kit
Garage Door Cable and Pulley Replacement Kit, Garage Door Spring Kit
★★★★★★★★★★2 pairs of 1/8 in x 168 in cable
4 pulleys with clevis forks
Splints, S-hooks and eye bolts
- Four pulleys and two cable pairs cover a whole standard door in one box
- Galvanized steel resists rust and corrosion
- Usable for spring conversion or adding safety cables
- Bolt and S-hook sizing may not match every door without adaptation
- No printed instructions in the box
This kit has been listed and selling for years, and that longevity shows up in the consistency of its feedback. It is the most complete box in the roundup by piece count, and for a homeowner doing a full cable and pulley job on a standard door it means one order instead of two.
You get two pairs of 1/8 inch by 168 inch galvanized steel cable, two stationary pulleys, two rear wheel pulleys with clevis forks, four bolts and nuts, two three-eye splints, two S-hooks and two 5/16 inch eye bolts with nuts. That is everything the manufacturer of a standard torsion or extension door uses to run a cable. Buyers highlight reduced operating noise, smoother movement and the completeness of the hardware set after a successful install.
Best for a first full cable and pulley replacement
The three-eye splints and S-hooks are the reason to buy this one over a cheaper two-pulley box. A splint is what joins the extension spring to the cable, and a set that includes them, plus the eye bolts, means the job does not stall halfway through because you need one more part. The stated fit covers torsion spring doors up to 12 ft and extension spring doors up to 9 ft. The same hardware also lets you add safety restraint cables to an older door that never had them, which is a genuinely worthwhile job on an extension spring setup.
Not ideal if you need printed instructions or an exact hardware match
There is no paper in the box. Owners consistently rate the fit as good but note that bolt and S-hook sizing varies by door configuration, so have your existing hardware in front of you while you order rather than after. The galvanized finish is the right choice for a damp garage, but it is not a substitute for 304 stainless cable if your door sits in a salt-belt or coastal exposure. As always with a full kit, measure your old cable length before you cut anything.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

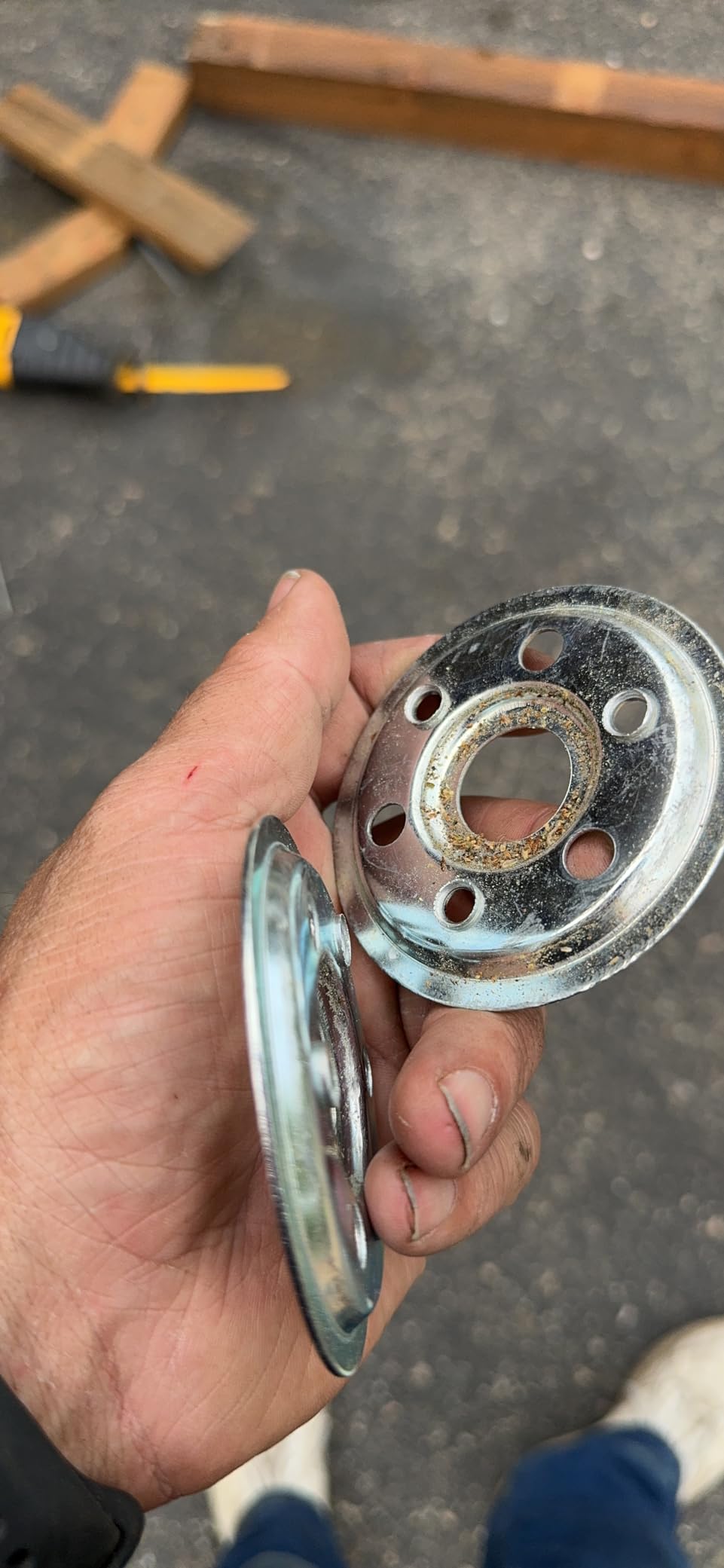

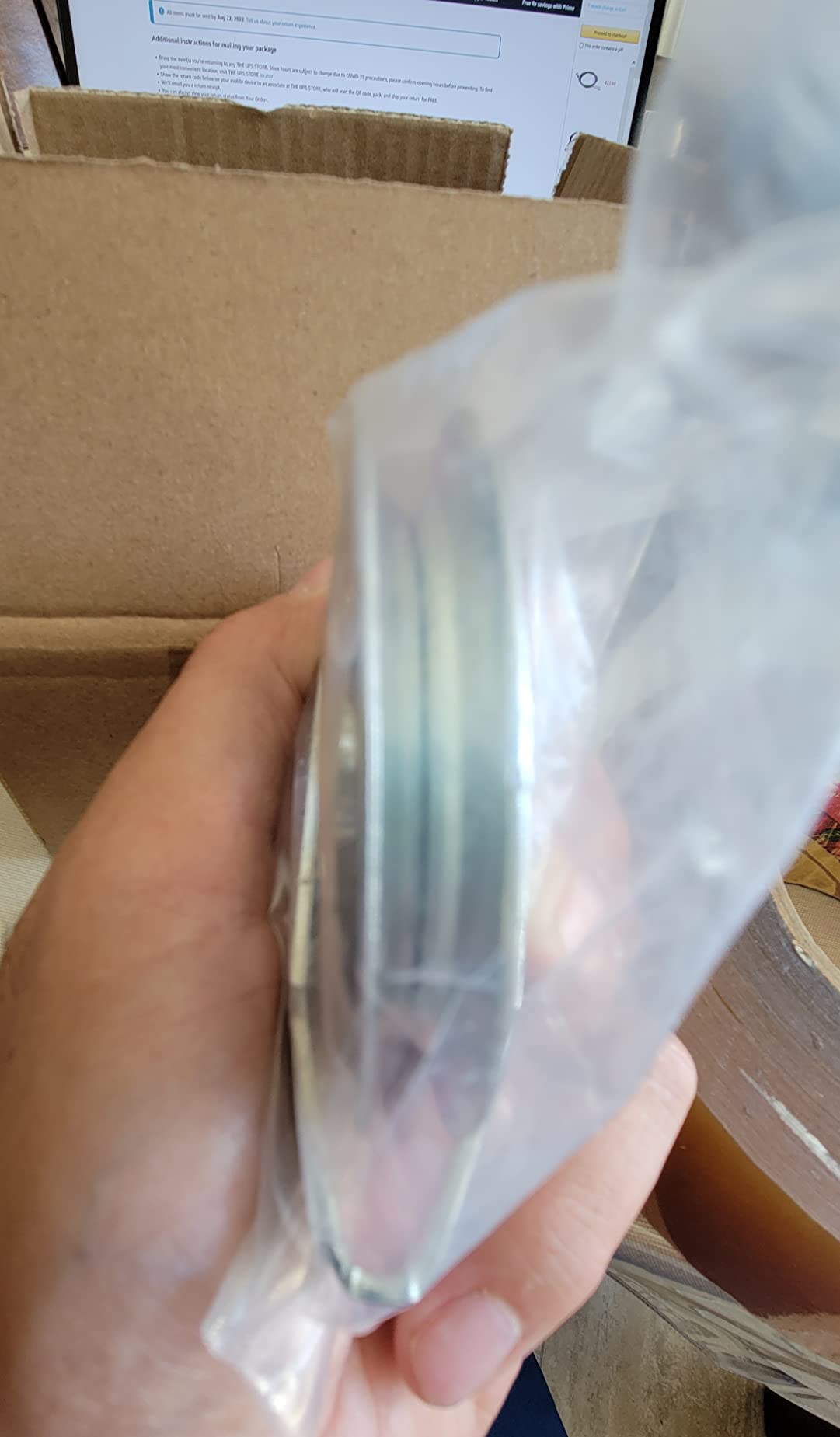

4. HOME MASTER HARDWARE Cable and Pulley Kit – Best for Quiet Operation
HOME MASTER HARDWARE Cable and Pulley Replacement Kit-4pcs 3″ Heavy Duty Pulleys, 2pcs Galvanized Aircraft Cables-3/32 Diameter 12 Fasteners for Overhead Sectional Garage Doors
★★★★★★★★★★9 ball bearing pulleys
3/32 in x 158 in cable
Zinc plated with sleeves
- Four 9-ball-bearing pulleys give noticeably quieter and smoother travel
- Eight aluminium compression sleeves and two cable clamps included
- Four pulleys cover a full front and rear replacement
- 3/32 in cable means doors using 1/8 in need a different kit
- Extra S-hooks and clamps may go unused on some installs
Noise is the reason most people replace pulleys that still turn, and this is the kit built around that complaint. The four pulleys carry 9-ball bearings, and owners report the difference is immediate rather than gradual.
Cables are 2.6 mm, which is 3/32 inch, at 158 inch long in 7×7 strand rated to 1200 lb. The body is zinc plated steel and the box includes 8 aluminium compression sleeves, 2 cable clamps, 2 S-hooks and 12 fasteners in total. Compression sleeves matter more than most listings admit: they are the part that stops a cable end from fraying inside the bottom bracket, and having eight of them means you can re-crimp a failed end without a second trip to the store.
Best for an attached garage where noise is the problem
Forum posts on r/HomeImprovement describe swapping plastic-bushed pulleys for ball-bearing ones and going from a door that woke the baby to one they cannot hear from the bedroom. This kit is the version of that swap with cables in the box, so it works whether your problem is noise alone or noise plus a cable. It suits both torsion and extension spring doors.
Not ideal if your door runs 1/8 inch cable
This is the single most common buying mistake we see with this kit. The cable is 3/32 inch, not 1/8 inch, so a door on the heavier 1/8 inch cable needs a different kit even though the pulleys themselves are fine. Measure the old cable with a caliper or, failing that, compare it against a coin before you order. The included S-hooks and clamps also tend to be surplus on a straightforward two pulley swap.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
5. RealPlus Cable and Pulley Kit – Best 2000 lb Cable Set
RealPlus Garage Door Cable and Pulley Kit, Including 2 Pairs of Galvanized Aircraft Cables and 4pcs Heavy Duty 3″ Pulley Sheaves
★★★★★★★★★★1/8 in x 168 in 7x19 cable rated 2000 lb
4 heavy duty 3 in sheaves
16 piece hardware bundle
- Two pairs of 7x19 cable carry a 2000 lb tensile rating
- Full 16 piece bundle covers a complete cable and pulley rebuild
- Works across torsion and extension spring door setups
- The hardware pile is larger than some installs need
- Cable length must suit your door height and drum wrap
The RealPlus is the one we would reach for on a heavy insulated door or a door that takes a hard daily beating. Its cable is the heavy 1/8 inch 7×19 strand rated to 2000 lb, which is the same tensile class used on the complete kits in the 1/8 inch range, and the pulleys are rated 200 lb each for doors up to 400 lb.
Two pairs of 1/8 inch by 168 inch cable come with two stationary pulleys, two rear wheel pulleys with clevis fork, four bolts and nuts, two three-eye splints, two S-hooks and two 5/16 inch eye bolts with nuts. Stated fit is torsion spring doors up to 12 ft and extension spring doors up to 9 ft. Owners credit the heavy gauge and the fact that everything arrives in one box, with quiet and smooth operation after install.
Best for heavy or high-cycle doors
Insulated steel and wood sectional doors are heavier than the basic uninsulated panels most kits are specced against, and 200 lb per pulley is the line where a lighter duty sheave starts to feel it. The 7×19 construction also has far more individual wires than 7×7 at the same diameter, which is why it bends around a cable drum without kinking. For a door that runs twenty times a day, or a rental property where nobody is gentle with the remote, that is the difference between a cable that lasts and one that does not.
Not ideal for a small job or a 3/32 inch door
There is no 3/32 inch cable in this box, so a door already on the thinner gauge needs a different kit. The hardware count is generous, and on a simple two pulley replacement a good portion of it will sit in the toolbox. Owners also mention that assembly takes care to align the splints and clevis forks properly, so budget an extra few minutes rather than assuming the parts just drop in.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
6. scottchen PRO 3 Inch Pulley Kit – Best Ball Bearing Pulley Set
scottchen PRO 3″ Heavy Duty Garage Door Pulley Kits, 3/8″ Arbor 200LB Load, 4 Sheave Pulleys, 2 Clevis Forks, 4 Bolts and Nuts Kit
★★★★★★★★★★9 ball bearing race, pre lubricated
200 lb per pulley
3/8 in bore and groove
- Pre lubricated 9 ball bearing race rolls smoothly and measurably quiets the door
- Steel build feels sturdier and better finished than budget sets
- Four pulleys and two clevis forks in one box
- Supplied fasteners are Phillips head screws rather than hex bolts
- The 14 mm nut size has to match your existing hardware
Among the pulleys-only sets, this is the one with the strongest combination of rating and owner feedback. Reviewers consistently credit the ball bearing smoothness, the drop in door noise and shuddering, and the build quality compared with big box store alternatives.
Each sheave is 3 inch with a 3/8 inch bore and a 3/8 inch cable groove, rated 200 lb per pulley for doors up to 400 lb. The centre race is steel with nine ball bearings, pre-lubricated at the factory. It accepts pulling cable or straps up to 5/16 inch diameter, which is wider than most of the kits here and matters on older doors that used heavier cable. The box holds four sheaves, two clevis forks, four screws and four nuts, and the four pulleys can be used as two fixed plus two sliding clevis units.
Best for curing a shuddering or jerky door
That grinding shudder as the door changes direction is almost always a dry or grooved sheave, not a balance problem. Owners report this set curing shuddering, jerky travel and squealing pulleys, and several DIYers fitting it in ten to fifteen minutes with no experience. The wider 5/16 inch cable acceptance is the quiet advantage here, because it fits doors that a 1/4 inch groove pulley set would not.
Not ideal if you prefer hex bolts or need cable
The recurring gripe is the hardware type. The kit ships Phillips head screws where many installers would rather have hex head bolts they can back out with a wrench, and the included 14 mm nut has to match the hardware already on your door. Existing hardware is often reusable, so the screws may never be used at all. As with the other pulleys-only sets here, no cable is included, so plan a separate cable if yours are frayed.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
7. Granatan Extension Spring Pulley and Cable Kit – Best for Extension Spring Doors
Garage Door Pulley and Cable Kit, 4 Pulley Set with 2 Steel Cables, Fits 7 ft and 8 ft Garage Doors, 3 Inch Low Noise Pulleys with S Hooks and Hardware, Garage Door Extension Spring Replacement Parts
★★★★★★★★★★Extension spring systems only
1/8 in x 167.7 in cables
4 pulleys with 10 mm bore
- Cables sized for 1/8 inch extension spring systems with generous length
- Four pulleys and matching clevis brackets cover both sides at once
- Owners report smooth and quiet door travel
- Not compatible with torsion spring systems
- 10 mm centre bore limits which existing pulleys it will swap with
Older houses, especially ones built before torsion springs became standard, usually run extension springs on a channel. This kit is built for exactly that door and says so plainly, which is more than most listings in this category do.
Two steel cables at 1/8 inch diameter and 167.7 inch, roughly 13.9 ft, come with four 3 inch pulleys that have a 10 mm centre bore, plus four clevis brackets, four bolts, four nuts, eight sleeves, two cable clamps and two S-hooks. Owners are happy with the matched cables, pulleys and brackets and report noticeably smoother operation after fitting. The listing also points you at the door manufacturer service procedure, which is sensible advice for anyone who has not done this before.
Best for an older extension spring door with no safety cables
The generous cable length is the useful part here. On a 9 ft or taller extension door, a short cable forces you to re-splice, and 167.7 inch gives you slack for that. It is also the kit to buy if your door is missing restraint cables entirely, which is common on homes from before those were standard: the 8 sleeves and cable clamps let you rebuild the cable ends properly while you are already in there. The manual says to follow the door manufacturer service procedure, and on an older door that document is the difference between a clean job and a guess.
Not ideal for torsion doors or a different bore size
Extension spring systems only. If your door has a torsion tube and springs mounted on a centre bracket, this is the wrong box and the pulleys will not be the parts you need. The 10 mm centre bore is the other constraint: it is narrower than the 3/8 inch bore on the standard 3 inch sets, so check the diameter of your existing pulley before you commit. On a torsion door, look at kits one and two instead.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
8. Extra Heavy Duty Pulley and Safety Cable Set – Best for Adding Restraint Cables
Extra Heavy Duty Garage Door Pulley 3 Inch & Safety Cable Complete Set for Ext Springs
★★★★★★★★★★3/32 in x 120 in restraint cables
200 lb capacity, 10000 cycles
S-hooks and adjustment clips
- The only kit here that ships actual safety restraint cables
- Ships complete with cables
- S-hooks and adjustment clips on hand
- Owners report durable pulleys that outlast cheaper sets
- The 120 in restraint cable is too short for some installs
- Pulley hook sits far back and can twist the safety cable
Restraint cables are the safety cable that keeps a door from dropping if a lift cable fails, and on an extension spring door they are not optional. This is the only kit in the roundup that includes them, which is why it earns a place here despite a smaller review base.
You get a pair of 3/32 inch 7×7 restraint cables at 120 inch, two S-hooks at 1/4 inch by 2-1/2 inch, two cable adjustment clips, two heavy duty 3 inch pulleys and two 3 inch clevis pulley kits. Capacity is rated at 200 lb for 10000 cycles, and the pulleys are built to work with a range of door types. Several owners used the kit to rebuild broken cable brackets and avoid a service call entirely.
Best for an extension spring door with no safety cable fitted
Older doors in coastal and damp climates, and any extension spring door where nobody can confirm restraint cables were ever installed, are the right home for this set. The clips let you tension the restraint cable correctly so it catches the bottom bracket if the lift cable lets go. The 200 lb and 10000 cycle rating is a sensible match for a standard residential door, and the fact that the pulleys, cables, hooks and clips all ship together means the retrofit is one job rather than three.
Not ideal for tall doors without extra cable
The 120 inch restraint cable is the limitation buyers mention most. On a taller install it simply does not reach, and 12 inch extension is often what you need, so expect to buy extra restraint cable for a high door. The second point is more subtle: the pulley hook sits far back on the bracket, and under load it can twist the safety cable. Route the cable so it runs straight rather than at an angle and the twist goes away.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
9. Granatan 3 Inch Heavy Duty Pulley Kit – Best for Straight Pulley Swaps
Heavy Duty Garage Door 3″ Pulley Kits, 3/8″ Arbor 200LB Load, Complete Hardware Included
★★★★★★★★★★4 pulleys with 3/8 in arbor
200 lb load per pulley
Clevis forks and fasteners included
- Owners report quieter and smoother travel after swapping worn pulleys
- Beefier than original pulleys on doors from the 1970s
- Covers the same repair a technician would do in one visit
- One reviewer found a pulley very tight out of the box
- Pulley only so cables must be bought separately
Some doors do not need anything more than four new sheaves. If yours is a straightforward 3 inch pulley on a 3/8 inch arbor, this kit is built for that and nothing else complicated.
Four 3 inch sheave pulleys with a 3/8 inch arbor, rated 200 lb each, come with two clevis forks, four bolts and four nuts. The pulleys are engineered to reduce friction for smoother operation and are listed as compatible with a range of doors and openers. Buyers confirm they stop the squealing and grinding they had on older extension spring doors, and one notes the pulleys feel sturdier than the original hardware on a 1970s door.
Best for an older door with 3/8 inch arbor pulleys
The arbor diameter is the thing to verify, and if yours is 3/8 inch this is a direct like-for-like replacement for the four pulleys on a standard door. The listing itself advises checking product size against your existing hardware before buying, which is good advice and costs nothing. Two owners also mention the swap resolved doors that were lopsided or jamming, which is what happens when one sheave has flattened and the cable rides high in the groove.
Not ideal for doors that need cables, or if you get one stiff pulley
There are no cables, no clamps and no S-hooks in this box, so a frayed cable means a second order. More importantly, one reviewer reported a pulley that was very tight and hard to turn straight out of the box. That is a bearing packing issue rather than a defect, and it is easy to work around: spin the sheave by hand, work a little white lithium grease into the race, then fit it. Do that to all four and you will not have a noise problem later.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
10. YHDOOR 3 Inch Pulley Kit – Best Budget Pulley Set
YHDOOR Garage Door 3″” Pulley Kits, Kits Including 2 Stationary Pulleys and 2 Rear Wheel Pulleys with Clevis Fork,Garage Door Parts, Silver
★★★★★★★★★★2 stationary and 2 rear wheel pulleys
Anti corrosion steel body
Clamps, screws and nuts included
- Lowest cost per pulley in this roundup with a strong rating
- Anti corrosion and anti rust steel finish
- Clamps
- screws and nuts make the install self contained
- No cables included
- pulleys only
- Sellers advise checking dimensions for compatibility first
If the door is a standard 3 inch pulley job and the budget is the deciding factor, this is the set that costs the least per pulley while still carrying a strong rating. It is also listed as suitable for barn doors and gym applications, which is a decent indicator of how the bearing holds up.
The box contains four pulleys, two stationary and two rear wheel pulleys with clevis fork, in steel with an anti corrosion and anti rust finish, plus two clamps, four screws and four nuts. Owners rate the pulleys highly for value and easy installation on standard 3 inch replacement jobs, and the only recurring instruction is to verify sizing against the door hardware first. The packaging is compact at 5 by 4 by 4 inches and weighs just under two pounds.
Best for a budget four pulley replacement
Everything needed to swap four pulleys is in the box, including the two clamps, which is not true of every budget set. That makes it a clean single purchase for the most common repair in this whole article, and the anti corrosion finish is a sensible default for a garage that sees condensation. If your door has a 3/8 inch arbor and standard cable, this covers it and leaves money in your pocket for the tools.
Not ideal if you are replacing cables or if you want cable groove detail
There are no cables, and the listing does not specify a cable groove diameter, so if your door runs 5/16 inch cable you should confirm fit with the seller before ordering rather than after. Both the manufacturer and owners tell you to compare dimensions against your existing hardware first, and on a low cost part that check is worth the minute it takes. It is also a pulleys-only set, so a frayed cable on the same door means ordering again.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
11. QWORK 4 Pack 3 Inch Pulley Kit – Best for Extension Spring Pulley Swaps
QWORK 4 Pack 3″ Heavy Duty Garage Door Pulley Kits, 4 Pcs Sheave Pulleys, 2 Pcs Clevis Forks, 4 Pcs Bolts and Nuts Kit, 3/8″ Arbor 200LB Load, Extension Spring Pulley Wheel
★★★★★★★★★★9 ball bearing race, pre lubricated
200 lb per pulley
Accepts cable up to 5/16 in
- Pre lubricated 9 ball bearing race reduces door noise and jerky travel
- Full hardware kit of pulleys
- clevis forks
- bolts and nuts
- Cable groove accepts cables or belts up to 5/16 in
- Some buyers rate bearing feel and finish below the top rated sets
- Intended primarily for extension spring systems
The QWORK sits in the middle of the pack, and that is exactly where a pulley set belongs. The 3/8 inch arbor and 3/8 inch groove match most residential doors, the 200 lb per pulley steel rating is right for the job, and the 9-ball bearing race arrives pre-lubricated.
Four pulleys, two clevis forks, four bolts and four nuts, in steel with a pre-lubricated 9-ball bearing centre race for smoother rolling. It accepts traction cables or belts up to 5/16 inch diameter and is aimed at common extension spring garage door systems. Roughly one buyer in ten rates it three stars or lower, pointing to average bearing feel and finish next to the very top rated sets rather than to any failure.
Best for a straightforward extension spring door
On a standard extension spring door with 3/8 inch arbor pulleys and cable up to 5/16 inch, this kit does the whole job with hardware for all four positions included. The pre-lubricated race is the reason to prefer it over a plain sleeve-bearing set at the same tier, because a lubricated ball bearing is what stops the squeak coming back six months later. The manufacturer also carries a return window, which is worth noting on a part you fit to your own door.
Not ideal if you need premium bearing feel or a torsion setup
The reviews are honest about the gap to the leaders: bearing smoothness and finish sit in the middle rather than at the top, and if your door is exceptionally noisy that difference shows. The kit is also intended primarily for extension spring systems, so on a torsion door check the fit before assuming it applies. As with the other pulleys-only sets in this roundup, cables are not included.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
12. Plutreas 3 Inch Heavy Duty Pulley Kit – Best for Barn and Gym Doors
Plutreas 3″ Heavy Duty Garage Door Pulley Kits 3/8″ Arbor 200LB Load Rating, Kits Including 4 Sheave Pulleys, 2 Clevis Forks, 4 Bolts and Nuts Kit
★★★★★★★★★★4 sheaves with 9 ball bearings
200 lb per pulley
Clevis straps and flange nuts
- Pre lubricated 9 ball bearing race for smoother
- quieter travel
- Works on barn doors
- gym systems and weight machines too
- Two bolts and two serrated flange nuts make the swap straightforward
- Cable groove accepts cable only up to 1/4 in diameter
- Only two bolts and two nuts in the box
The Plutreas earns its place for breadth rather than for any one garage door. It is also specified for barn doors, gym systems and weight machines, which tells you something about how the bearing handles sustained load, and it is the lowest cost pulley set we looked at.
Four 3 inch sheaves with a 3/8 inch bore sized to the bolt it accommodates, each rated 200 lb for doors up to 400 lb, in steel with a pre-lubricated 9-ball bearing centre race. The groove accepts cables up to 1/4 inch diameter. The box holds four sheaves, two clevis fork yoke straps, two bolts and two serrated flange nuts. Owners credit the ball bearing smoothness and the easy swap-out of worn pulleys.
Best for non-standard uses of a garage door pulley
If your pulley is not on a sectional garage door at all, a rated 200 lb steel sheave with a pre-lubricated nine ball race is a sensible building block. Barn doors, gym equipment and weight machines all use the same basic geometry, and this kit is the one in the roundup that is explicitly specced for those applications. For a garage door it is a perfectly good four pulley set for standard 1/8 inch or 3/32 inch cable.
Not ideal for heavier cable or a four bolt install
The 1/4 inch maximum cable diameter is narrower than the 5/16 inch groove on some kits, so a door running heavy cable will not fit. The fastener count is also the smallest here: two bolts and two nuts means a four pulley swap may need extra fasteners unless your existing hardware is reusable. About one rating in ten sits at three stars or lower, reflecting average finish rather than failure, and the review base is the thinnest of the twelve.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
How to Put a Garage Door Cable Back on the Pulley?
If the cable came off the pulley but has not snapped, you can put it back yourself in about half an hour. This is the highest volume repair question in this category, and the method matters more than any tool: the cable sits in the groove, loops under the drum on a torsion system, and is then re-secured at the bottom bracket.
Clamp the door in the down position. Put a locking clamp or a vise grip on both vertical tracks below the rollers. Never work under an unclamped door.
Release the tension on a torsion system. If you have torsion springs, wind them down with proper winding bars, not a screwdriver, until the cables go slack. This is the step that turns a five minute job into a call to a technician.
Mark the cable height on the drum. On a torsion door, note how much cable is currently wrapped on the drum before you remove anything, then rewind to the same position.
Feed the cable into the bottom bracket. The cable runs from the bottom corner bracket, up and over the pulley at the top of the track, and back to the cable drum. Thread it through the slot in the bottom bracket first.
Seat the cable in the pulley groove. Push the cable fully into the sheave groove so it sits at the bottom of the V, not riding up the shoulder. A cable riding high will jump the groove again in a cycle or two.
Recrimp the end with a compression sleeve. Thread the tail through the bottom bracket slot, slide an aluminium sleeve over it and crimp with a cable crimping tool or heavy locking pliers. Several sets of twist alone will not do this properly.
Wrap the cable onto the drum. Feed the cable onto the drum groove, keeping the wraps side by side and tight, and re-tension the springs with your winding bars.
Test the door twice, then grease the pulleys. Run the door down and up on manual mode, watching the cable track. Then put a small amount of white lithium grease in the top of each pulley race before the door goes back to normal operation.
Two recurring problems. If the new cable feels too short, it is almost always because the drum was not wound to the original position, so reset the wind before shortening anything. And if a new cable keeps jumping the pulley groove, the cable is sitting on the shoulder, so pull it down into the bottom of the groove and re-seat it.
What Is Actually in the Box: A Parts Glossary?
The most common complaint about kits in this category is not quality, it is vocabulary. Buyers open a box of bolts and straps and have no idea what a three-eye splint is, which is why hardware omissions force a second trip to the store mid-repair. Here is what the parts are called.
Cable drum: the grooved wheel on the torsion shaft that the lift cable wraps onto. It is also where the cable drum or rear wheel pulley lives.
Stationary pulley: the fixed sheave bolted to the top corner bracket that redirects the cable from vertical to horizontal. Two per door.
Rear wheel pulley: the pulley riding on the cable drum itself. Two per door, which is why four is the correct count for a standard door.
Clevis fork: the yoke and strap that lets a pulley travel on the drum while staying on the cable line.
Three-eye splint: the three-holed connector joining an extension spring to the lift cable. Its absence is the reason some complete kits stall halfway through a conversion.
S-hook: the open hook that connects a cable to an eye bolt on the bottom bracket or a spring. It is the least secure part in the system, so check it every year.
Compression sleeve: the small aluminium barrel you crimp over the cable tail. It is what stops the cable fraying inside the bracket, and buying eight of them is cheaper than a second trip.
Cable clamp: the two-bolt clamp used instead of a crimp on some bottom brackets, mainly on older doors.
Safety cable and guide: the restraint cable and its nylon shelf, fitted on extension spring doors so a failed lift cable cannot drop the door.
When you compare two boxes, count against this list. A kit with cables, four pulleys, clevis forks, splints, S-hooks, eye bolts and sleeves is a genuine one-visit repair kit. A kit with two pulleys and four cables is a partial repair, and you will be back at the hardware store.
How to Choose a Garage Door Cable and Pulley Repair Kit?
Start with the door, not the kit. Measure these four things and any product page becomes easy to read.
One: which spring system do you have? With the door closed, look up at the ceiling. A torsion system has a steel tube across the header with a spring wound on each end, usually painted or caged, and one long centre bracket hanging down. An extension system has springs running along the ceiling on either side of the track, often with cables and drums at the rear. Cable and pulley kits work on both, but kit seven here is extension only, and any work on the springs themselves goes to a professional.
Two: what cable gauge and length do you need? The two common gauges are 1/8 inch and 3/32 inch. The 1/8 inch 7×19 strand is the stronger of the two, rated around 2000 lb in this roundup, while 3/32 inch 7×7 is rated around 960 to 1200 lb. Cable length follows the door height and the path over the drum: 168 inch covers the common 7 ft and 8 ft doors, 158 inch covers most 7 ft doors, and 156 to 168 inch is the normal range for a 12 ft door with a torsion setup. Slightly long is fine, too short is not, so measure before the old cable is off.
Three: what is the pulley bore? The 3/8 inch bore on the standard 3 inch sheaves matches the mounting bolt on most residential doors, and 10 mm is the narrower size found on some older doors and on the extension spring kit in this roundup. Check the diameter of the pulley you are replacing rather than assuming.
Four: what does the door weigh? A typical single-car steel sectional door lands around 80 to 150 lb, and an insulated or wood door considerably more. Pulleys rated 200 lb each handle a door up to 400 lb, which covers the residential range with margin, and the 7×19 1/8 inch cable keeps a safety factor of well over four to one on a standard door. If your door is visibly heavy, high lift or vertically lifted, buy the heavy gauge cable rather than the thinner one.
Tools you will actually need. A 3/8 inch wrench and a set of sockets, locking pliers or a proper cable crimping tool, heavy duty wire cutters, a step ladder, safety glasses and a can of white lithium grease. That is the whole list. Many kits ship compression sleeves, so if yours does, you can crimp with locking pliers in a pinch, but a real crimper is the difference between a cable that holds for a decade and one that frays in the bracket.
DIY or professional? Parts cost is a small fraction of a professional visit, and homeowners in forum threads consistently report finishing the whole job in 30 to 60 minutes with two people. The parts-versus-labour economics strongly favour doing it yourself, with one condition: if the job involves springs, a torsion shaft, a broken drum or a door that is out of level, the labour is not where the money goes, the safety is. If you want the noise and safety side covered after the repair, our garage door opener guide is worth a read before the motor is the next thing to go.
Maintenance after the install. Grease the top of each pulley race once a year with white lithium grease, more often in a coastal or high humidity garage. Check the S-hooks and bottom bracket bolts twice a year, because those are the parts that fail quietly, and keep an eye on the drums for the bright scoring marks that mean a cable is running off the groove.
Frequently Asked Questions
How to fix garage door cable off pulley?
Clamp the door in the down position first, release the torsion spring tension with proper winding bars if the door has torsion springs, then feed the cable back into the bottom bracket slot, seat it fully in the bottom of the pulley groove and secure the tail with a crimped aluminium compression sleeve. Re-wind the springs to their original position and test the door twice before returning it to normal operation.
How to get garage door up when cable breaks?
If the door is open when the cable snaps, pull the red emergency release cord so the opener disengages and you can lift the door by hand. That cord is the opener release, not the lift cable. If the door is closed and has dropped, do not force it: clamp the track and replace the cable and pulleys before attempting to raise it.
How long do garage door pulleys last?
It depends on the bearing type and the garage. Stamped steel or plastic-bushed pulleys on a lightly used door commonly last five to ten years, while pre-lubricated ball bearing pulleys routinely outlast the ones they replace by three to five years. A single dry or grooved sheave is often the cause of a whole door sounding worn, so replace all four when you replace one.
How much does it cost to fix a broken garage door cable?
Doing it yourself, the parts are a cable and pulley kit plus whatever tools and extra hardware you are missing, and the job takes 30 to 60 minutes with a helper. Hiring a technician replaces those parts costs with labour and a call-out, which is several times the parts figure, so the economics usually favour the DIY route for a cable and pulley swap.
How much does it cost to replace a garage door pulley?
A pulley set is the cheapest repair in this category because it is four steel sheaves and a few fasteners, and the whole job is a single bolt per pulley. Since no cable is disturbed, a DIY swap takes minutes with a wrench. A technician charges for the visit and the labour, which is where the cost sits rather than on the parts themselves.
What can I use to replace the pull cord on my garage door?
The pull cord on a garage door is the red emergency release cord attached to the trolley on the opener rail. It is not a lift cable and is not part of a cable and pulley kit. If it is broken, replace the whole emergency release assembly for your opener model, and never substitute it for a lift cable, which carries the full weight of the door.
Should I replace both garage door cables or just one?
Replace both, always. Cables on the same door wear at the same rate, so a new cable next to a tired one guarantees a repeat failure and another trip up a ladder. It also means you only unbolt the bottom brackets once, and both cables end up the same gauge and length, which is what keeps the door level.
My garage door pulley cable broke. What should I do?
First secure the door: clamp both vertical tracks so it cannot drop, and keep everyone clear of the opening. Then check whether a spring, shaft or drum is involved, because that is professional work. If it is only a cable, pulley or bottom bracket, pull the red release cord for manual operation, get the car out, and fit a cable and pulley kit with a helper.
Final Verdict on the Best Garage Door Cable and Pulley Repair Kits in 2026
Twelve kits, and the right one depends on which part actually failed. Our top pick overall is the EWONICE 3 Inch Heavy Duty Pulley Kit: the highest rated set in the group and the most widely reviewed, with a factory-lubricated 9-ball bearing race that stops the squeak coming back. If the cables snapped or frayed rather than the pulleys failing, the EWONICE Cable and Pulley Replacement Kit covers both cable gauges in one box and is the most forgiving choice when you are not certain what is up there, while the RO6G kit is the other complete option, with the deepest hardware bundle.
Two rules decide the rest. Replace both cables, always. And keep the spring boundary firm: cables, pulleys, brackets and drums are a weekend job with a helper and a clamp, while anything involving a spring or a torsion shaft belongs to a technician. If you want the second opinion for the surrounding hardware, our repair kit roundups cover the same kind of decision-making for a different category.
