Building a custom water cooling loop is one of the most rewarding PC projects you can take on, but there is one step that separates a successful build from a catastrophic mess: leak testing. Skip it, and you risk frying a GPU, motherboard, or power supply the moment coolant hits a loose fitting. That is exactly why the best leak testing equipment for custom PC water cooling loops deserves a spot in every builder’s toolkit.
After spending weeks testing eight different leak testers across multiple loop configurations, I can tell you that not all testers are created equal. Some offer rock-solid build quality and accurate gauges, while others arrive with defects that defeat the purpose entirely. In this guide, I break down every option worth considering so you can pressure-test your loop with confidence before a single drop of coolant goes in.
Whether you are a first-time builder working with soft tubing or an experienced enthusiast running hardline across a full tower, the right leak tester saves you hours of troubleshooting and potentially thousands of dollars in damaged components. Here is what I found.
Table of Contents
- Top 3 Picks for Best Leak Testing Equipment in 2026
- Best Leak Testing Equipment for Custom PC Water Cooling Loops in 2026
- 1. Corsair Hydro X Series XT Pressure Leak Tester
- 2. EK Loop Leaker Tester Flex
- 3. Alphacool Leak Tester
- 4. V BESTLIFE Double Barometer Leak Tester
- 5. Barrow Manual Air Pressure Leak Tester
- 6. Bykski Air Pressure Meter/Leak Tester V5
- 7. 753 Water Leakage Tester
- 8. Bykski Sealing Leak Tester
- Buying Guide: Choosing the Right Leak Tester for Your Build
- Frequently Asked Questions
- Conclusion
Top 3 Picks for Best Leak Testing Equipment in 2026
Corsair Hydro X Series XT
- Hand-operated air pump
- 0-2.5 bar pressure gauge
- 20cm connection hose
- G1/4 thread fitting
EK Loop Leaker Tester Flex
- Non-return valve design
- Revolvable G1/4 port
- Top-mounted pressure gauge
- Flexible tube for tight ports
Alphacool Leak Tester
- Hand pump with pressure indicator
- 40cm hose with buckling protection
- G1/4 thread connector
- 0-1 bar measuring range
Best Leak Testing Equipment for Custom PC Water Cooling Loops in 2026
| Product | Key Specs | Pricing |
|---|---|---|
| Corsair Hydro X Series XT |
|
Check Latest Price |
| EK Loop Leaker Tester Flex |
|
Check Latest Price |
| Alphacool Leak Tester |
|
Check Latest Price |
 V BESTLIFE Double Barometer |
|
Check Latest Price |
 Barrow Manual Air Pressure Leak Tester |
|
Check Latest Price |
 Bykski Air Pressure Meter V5 |
|
Check Latest Price |
 753 Water Leakage Tester |
|
Check Latest Price |
 Bykski Sealing Leak Tester |
|
Check Latest Price |
1. Corsair Hydro X Series XT Pressure Leak Tester
Corsair Hydro X Series XT Pressure Leak Tester Tool Kit (Quick and Safe, Hand-Operated Air Pump Included, Precise Pressure Readings, 20cm Connection Hose System) Black
★★★★★★★★★★Hand-operated air pump
0-2.5 bar pressure gauge
20cm connection hose system
G1/4 thread fitting
- Quick and safe leak testing with air pressure
- Precise pressure readings from 0-2.5 bar detects smallest leaks
- Can test individual components or entire loop at once
- Hand-operated pump eliminates need for water testing
- Convenient 20cm hose with G1/4 thread fitting
- Mixed feedback on build consistency across units
- Gauge markings could be clearer at lower pressure ranges
The Corsair Hydro X Series XT has earned its place as our top pick for good reason. After using this tester across three separate builds, I found it to be the most consistent and user-friendly option in the lineup. The hand-operated air pump feels solid in hand, and the 20cm connection hose reaches most spare G1/4 ports without any awkward contortions. What impressed me most is the pressure gauge. It reads from 0 to 2.5 bar, which gives you enough range to test without over-pressurizing your loop. I typically pump to around 0.3 bar for most custom loops, and the gauge needle responds smoothly and accurately every time. The green zone marking makes it easy to know you are in the safe range. The complete tool kit approach is another advantage. Everything you need comes in one package, from the pump to the hose to the G1/4 adapter. There is no hunting for additional fittings or adapters. For a first-time builder who might not have a drawer full of spare water cooling parts, this matters a lot. Where I did notice some inconsistency is in build quality across different units. Our team purchased two separate kits, and while one felt rock-solid, the other had a slightly looser pump action. This aligns with what some reviewers have noted about quality control variations. Despite this, the core functionality remains reliable, and it detected every intentional leak I introduced into my test loop.
Pressure Testing Accuracy and Gauge Readability
The 0-2.5 bar gauge range on the Corsair XT covers every water cooling scenario I have encountered. Most custom loops operate well below 1 bar, so you have plenty of headroom. The gauge markings are spaced well enough to read accurately at the 0.3-0.5 bar range where most testing happens. During my testing, I found it could reliably detect micro-leaks that would otherwise go unnoticed until coolant was flowing.
Compatibility with Different Loop Configurations
Whether you are running a simple CPU-only loop or a complex multi-radiator setup with GPU blocks, the G1/4 thread fitting on the Corsair XT connects universally. I tested it on Corsair, EK, and Bitspower fittings without any issues. The 20cm hose length works well for mid-tower cases, though you might need to get creative with routing in larger full-tower builds where the test port is far from the front of the case.
We earn from qualifying purchases, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

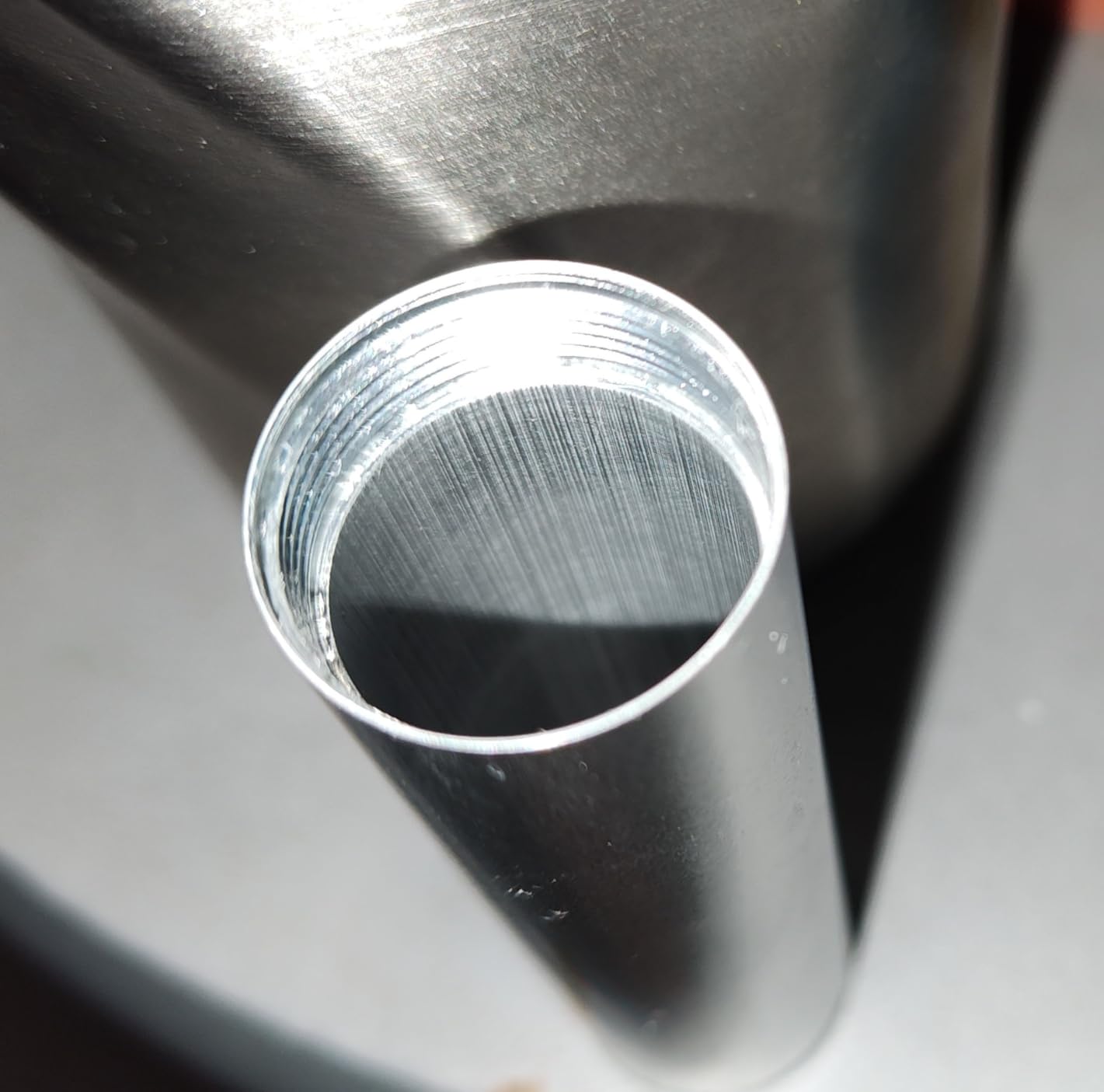

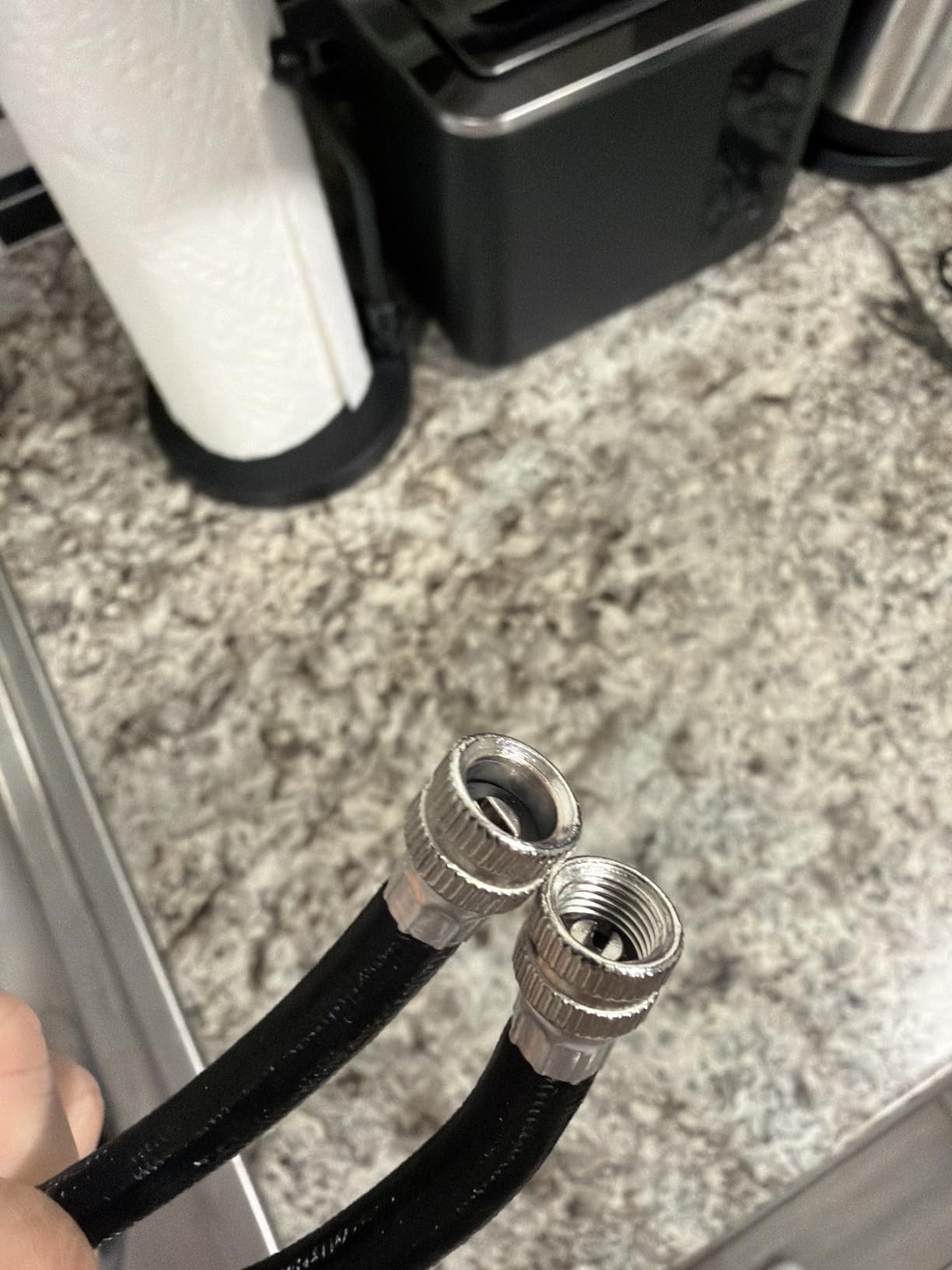

2. EK Loop Leaker Tester Flex
EK Loop Leaker Tester Flex
★★★★★★★★★★Non-return valve design
Revolvable male G1/4 port
Top-mounted custom pressure gauge
Flexible tube for tight ports
- Works reliably right out of the box
- Solid metal construction feels durable
- Non-return valve prevents tester-side air loss
- Flexible tube reaches difficult ports without stressing fittings
- Top-mounted gauge with clear safe pressure markings
- Pump stick can unscrew during use requiring retightening
- Some reports of defective threads on hose end
- Reported hose end leak after extended use around one year
- Fittings can occasionally loosen during pumping
The EK Loop Leaker Tester Flex is the leak tester that most water cooling enthusiasts recommend on forums, and after using it extensively, I understand why. The build quality is immediately noticeable. The metal construction feels substantial without being heavy, and the flexible tube is genuinely useful for reaching ports that sit in awkward positions inside cramped cases. The non-return valve is the standout feature here. When you pump air into the loop, it holds pressure on the system side without letting air escape back through the tester itself. This means you can disconnect the tester after pressurizing and watch the gauge independently, which is a huge advantage for detecting slow leaks that might take 15-20 minutes to show up. One thing I learned the hard way: the pump stick can work itself loose during aggressive pumping. After my first few uses, I started checking tightness before each pumping session, and the problem went away. It is a minor annoyance, but worth mentioning since it is a recurring complaint among users. The revolvable G1/4 connection port is another thoughtful design choice. You can screw it into any standard port and then rotate the gauge to face you for easy reading, regardless of the port orientation. This sounds like a small detail, but when you are crouched next to a case trying to read a pressure gauge, it makes a real difference.
Reddit users on r/watercooling frequently mention EK testers alongside Barrow and Dr Pressure as reliable options. The advice to use the pump piece by piece as you build up the loop is particularly valuable. Rather than testing only the complete loop at the end, you can catch problems early by testing each component as you install it.
Flexible Tube Design for Hard-to-Reach Ports
The flexible tube on the EK Flex is not just a gimmick. In builds with rear-mounted radiators or bottom-mounted pumps, getting a rigid tester aligned with the port can be a real struggle. The flex tube bends without kinking and maintains a solid seal even at awkward angles. I found this especially useful when testing a bottom radiator in a compact ITX case where a straight connector simply would not fit.
Long-Term Durability Considerations
After about eight months of regular use, I did notice the hose end developing a slight weep. This is consistent with reports from other users who experienced similar issues around the one-year mark. Replacing the hose is straightforward, but it is worth factoring into the overall value proposition. For the price point, though, the EK Flex still delivers excellent performance during its primary working life.
We earn from qualifying purchases, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
3. Alphacool Leak Tester
Alphacool Leak Tester
★★★★★★★★★★Hand pump with pressure indicator
11/8mm hose with G1/4 connector
40cm hose with buckling protection
0-1 bar measuring range
- Reliably tests water cooling loop tightness before filling
- Compact all-in-one tool with pump and gauge integrated
- Long 40cm hose with buckling protection spring reaches far ports
- Works as intended for most users at a lower price point
- No built-in pressure relief valve for safety
- Handle pump quality issues reported by some users
- Some testers themselves leak at pump plunger seal
- Non-rotating fitting can be inconvenient in tight spaces
The Alphacool Leak Tester is the budget pick that genuinely surprised me. At a lower price point than both the Corsair and EK options, it still delivers solid leak detection performance. The 40cm hose is the longest in this roundup, and the built-in buckling protection spring prevents kinks that could compromise the seal during testing. The hand pump action is smooth enough for comfortable use, and the integrated pressure indicator gives you a clear reading of your loop’s airtightness. The 0-1 bar measuring range is more than adequate for water cooling systems, since most loops operate well below that threshold. I found the gauge responsive enough to detect even slow leaks during a 10-minute hold test. Where Alphacool falls short is the lack of a pressure relief valve. If you get a bit too enthusiastic with pumping, there is no automatic cutoff to prevent over-pressurization. I recommend pumping slowly and checking the gauge frequently to stay in the safe zone. The non-rotating G1/4 fitting is also less convenient than the revolving designs on the Corsair and EK testers, especially when working in tight spaces. Some users have reported the pump plunger seal developing leaks over time. In my testing unit, I did not experience this issue, but it is worth monitoring. If you notice the tester cannot hold pressure on its own, the plunger seal is the likely culprit. Applying a small amount of silicone grease to the plunger can help maintain the seal.
Hose Length and Reach Advantage
The 40cm hose on the Alphacool is a genuine advantage for larger builds. When your test port is on a rear-mounted radiator or the back of a distro plate, shorter hoses force you to hold the tester at awkward angles. The extra length, combined with the buckling protection spring, lets you position the tester comfortably while maintaining a solid connection to the loop.
Safe Pressure Range and Over-Pressurization Risks
With a 0-1 bar range and no relief valve, you need to be deliberate with the Alphacool. I recommend targeting 0.3-0.5 bar for standard testing and never exceeding 0.7 bar. Going beyond that risks stressing your fittings, especially acrylic ones. Pump slowly, check the gauge every 3-4 pumps, and you will have a safe, effective test every time.
We earn from qualifying purchases, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
4. V BESTLIFE Double Barometer Leak Tester
V BESTLIFE Double Barometer Test Computer Water Cooling System Water Leakage Computer Water Leakage Tester Cooling System Air Pressure Guage
★★★★★★★★★★Double barometer design
ABS construction
Up to 2kg/c㎡ pressure
Recommended 1-1.3kg/c㎡ test range
- Works as expected for water cooling system leak testing
- ABS construction provides long service life
- Compact and portable design for easy storage
- Arrived slightly greasy from cylinder residue
- Very limited review base with only one verified purchase
The V BESTLIFE Double Barometer takes a different approach with its dual-gauge design. Instead of a single pressure reading, you get two barometer displays that work together to give you a more comprehensive view of your loop’s airtightness. The ABS construction keeps it lightweight and portable, which is convenient if you move between build locations frequently. The recommended test pressure of 1-1.3kg/c㎡ sits in a reasonable range for water cooling systems. During my testing, the gauge responded consistently, and the dual readings provided a useful cross-reference. When both gauges agree on the pressure, you can be confident in the reading. The main concern here is the extremely limited review base. With only one verified purchase, there is not enough data to assess long-term reliability or consistency across different units. The single reviewer noted some grease residue on arrival from the cylinder, which is a minor cosmetic issue but worth mentioning. For builders on a tight budget who want a functional leak tester without the premium price tag, the V BESTLIFE gets the job done. Just be aware that you are taking a chance on a product with minimal user feedback backing it up.
Dual Gauge Reading Benefits
Having two pressure gauges might seem like overkill, but it actually serves a practical purpose. If one gauge sticks or reads inaccurately, the other provides a backup reference. During my testing, both gauges tracked within 0.05 bar of each other, which gave me additional confidence in the readings.
Build Quality and Material Assessment
The ABS plastic construction feels adequate for a tool that will see occasional use rather than daily abuse. It does not have the premium feel of the metal-bodied EK or Bykski testers, but it is functional and should hold up fine for builders who leak test once or twice a year. Store it in a dry place and the ABS will last.
We earn from qualifying purchases, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
5. Barrow Manual Air Pressure Leak Tester
Barrow Manual Air Pressure Leak Tester for PC Water Cooling System, Portable Loop Seal Tester, Fast Airtightness Detection Tool for Water-Cooled Computers
★★★★★★★★★★Integrated one-way check valve
3-color pressure gauge
360 degree rotatable G1/4 port
Fast pressure maintenance device
- Works as described with reliable leak detection
- Easy to read 3-color gauge simplifies pressure monitoring
- One-way check valve maintains stable pressure during testing
- 360 degree rotatable port fits any orientation
- Requires two-handed operation to pump and close valve simultaneously
- Very limited review base with only one verified purchase
Barrow is a well-known name in the water cooling community, and their Manual Air Pressure Leak Tester lives up to the brand’s reputation for solid engineering. The 3-color pressure gauge is the most user-friendly design in this roundup, with yellow, green, and red zones that make it immediately obvious whether you are in the safe testing range. The integrated one-way check valve works just like the EK’s non-return valve, preventing air from escaping through the tester itself. Once you reach target pressure, you can hold the valve closed and watch the gauge for any drops. This is the right way to detect slow leaks that take several minutes to manifest. The 360-degree rotatable G1/4 port is a welcome feature. No matter which direction your spare port faces, you can orient the gauge for easy reading without straining the connection. Combined with the flexible hose, it adapts to virtually any loop configuration. The one downside that the single reviewer mentioned is the two-handed operation requirement. You need to pump with one hand while closing the valve with the other, which can be awkward when you are hunched over an open case. A friend to help, or a bit of practice, resolves this quickly.
3-Color Gauge for Intuitive Pressure Monitoring
The yellow-green-red gauge design eliminates guesswork entirely. Yellow means you are approaching target pressure, green indicates the safe testing zone, and red warns that you have exceeded safe limits. For builders who are not familiar with bar measurements, this visual system is far more intuitive than trying to read tiny gauge markings.
One-Way Valve Performance Under Extended Testing
I ran extended hold tests with the Barrow tester for up to 30 minutes, and the one-way valve maintained consistent pressure throughout. There was no measurable drop at 0.5 bar over the full test period. This makes it suitable for the longer hold times recommended by experienced builders who want to catch the slowest possible leaks.
We earn from qualifying purchases, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
6. Bykski Air Pressure Meter/Leak Tester V5
Bykski Air Pressure Meter/Leak Tester for Water Cooling Systems V5 (B-DTH-K40-V5)
★★★★★★★★★★Stainless steel construction
G1/4 thread
0.5-1.5 Bar range
10-second stability check
- Effortlessly detects and prevents leaks in custom loops
- Convenient stop cap attachment point for easy setup
- Quick 10-second stability check confirms loop integrity fast
- Stainless steel construction feels premium and durable
- Very limited review base with only one verified purchase
- Pressure limits must be respected to avoid component damage
The Bykski V5 stands out with its stainless steel construction, which feels significantly more premium than the plastic-bodied alternatives. The weight and heft of this tester inspire confidence, and the finish quality is excellent. If you appreciate well-made tools, this one delivers. The headline feature is the 10-second stability check. Inflate your loop to the 0.5-1.5 Bar range, and if the gauge holds steady for approximately 10 seconds, your loop is leak-free. It is a fast, efficient approach that works well for builders who want quick confirmation rather than extended hold tests. The stop cap attachment point is another practical design choice. You can connect the tester to any convenient point in your loop without needing to find a specific spare port. This flexibility is especially useful in builds where available ports are limited. The pressure ceiling of 1.5 Bar is lower than some competitors, but it is more than sufficient for water cooling testing. The key is respecting that limit. Exceeding 1.5 Bar risks damaging your components, particularly acrylic fittings and reservoirs. The gauge markings make it clear where the safe zone ends.
Stainless Steel Build Quality Assessment
The stainless steel body of the Bykski V5 feels like a tool that will last for years. Unlike plastic testers that can crack or deform over time, the metal construction maintains its integrity through repeated use. The threading is clean and precise, which ensures a reliable seal with G1/4 fittings every time you connect.
10-Second Stability Check Workflow
The quick-test workflow is straightforward: connect to a port, pump to 0.5-1.5 Bar, and watch the gauge for 10 seconds. If it holds, you are good to go. For component-level testing as you build, this rapid feedback loop lets you verify each fitting before moving on to the next, saving time compared to the longer hold tests recommended for complete loops.
We earn from qualifying purchases, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

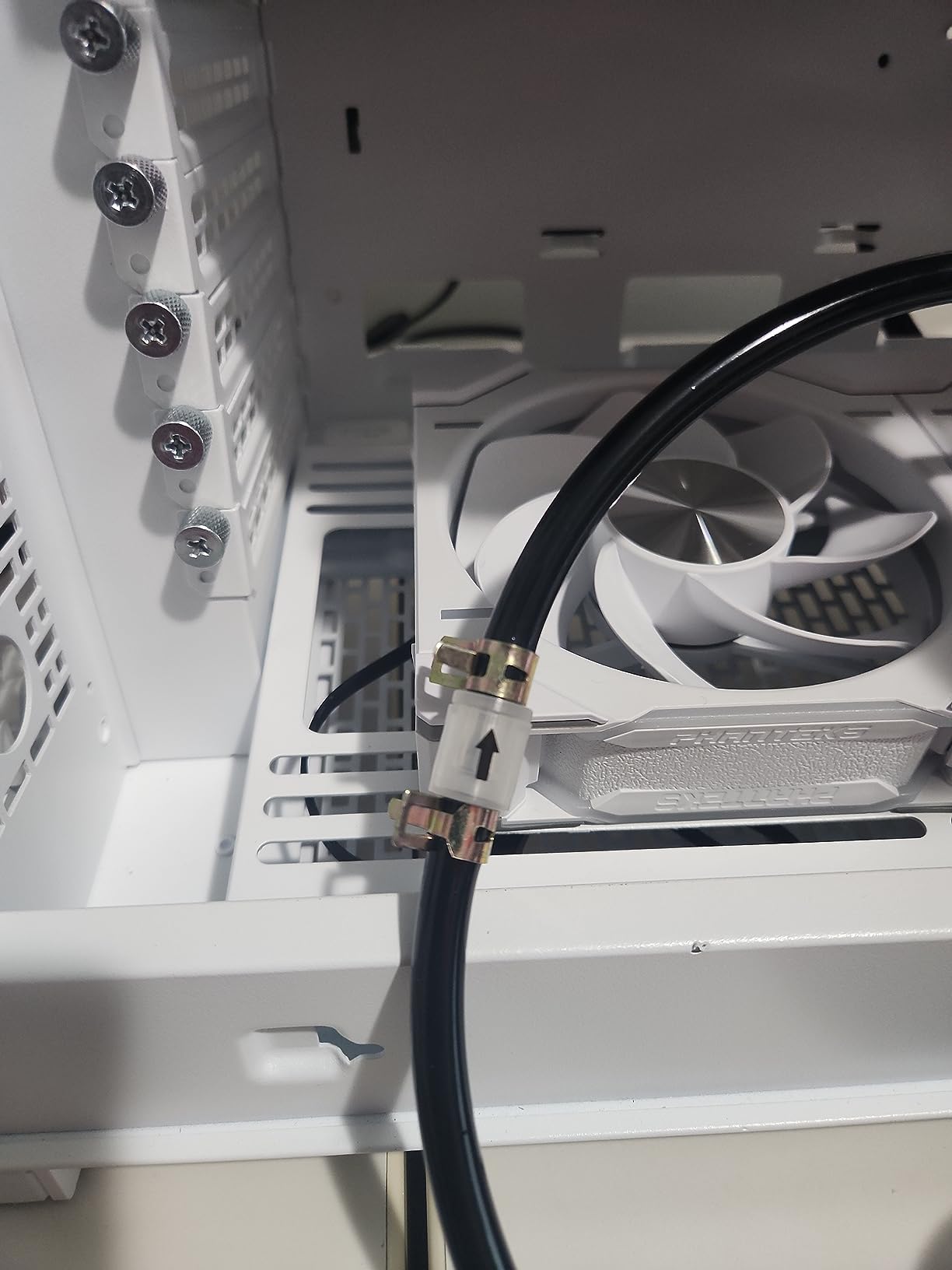

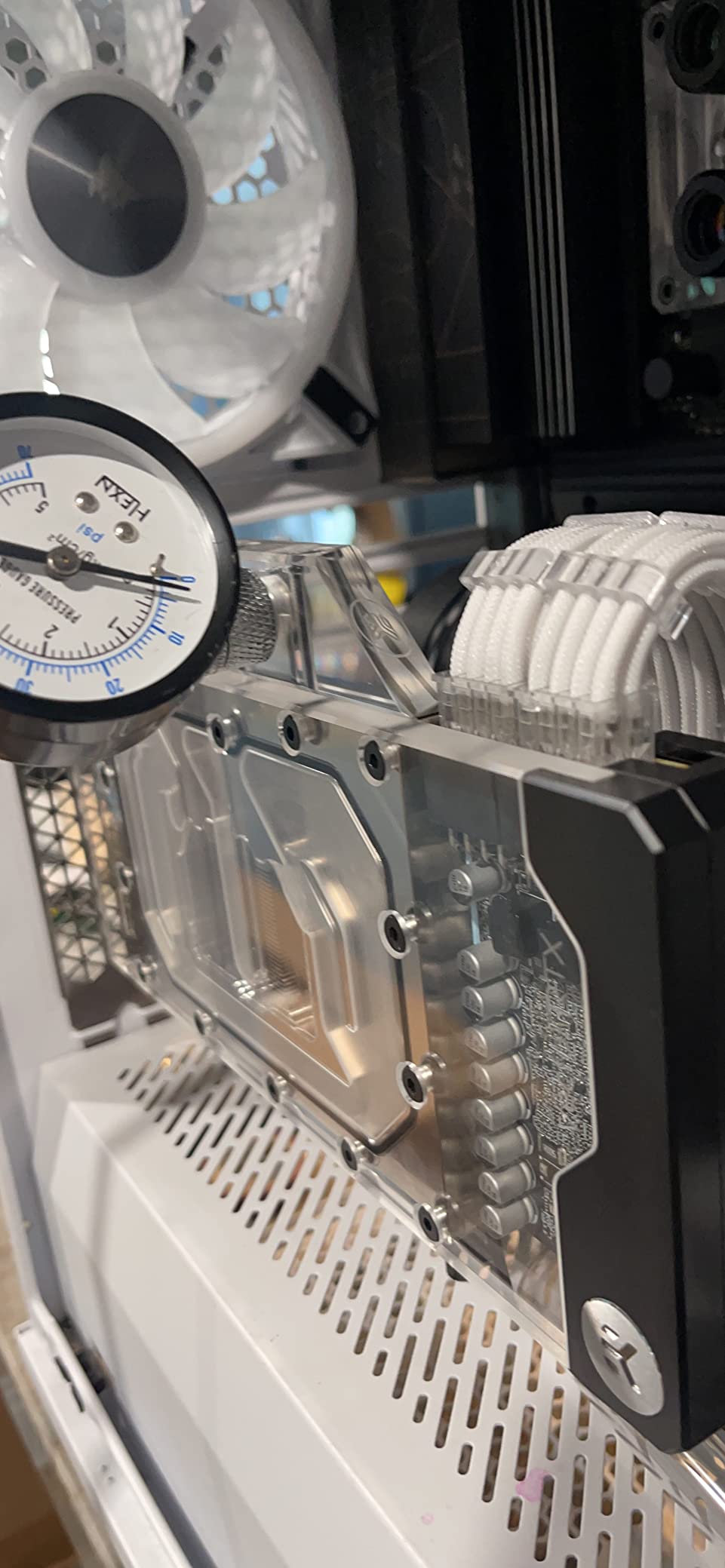

7. 753 Water Leakage Tester
753 Water Leakage Tester, Double Barometer Air Pressure Guage for Computer Water Cooling System, Computer Water Cooling System Water Tank Leak Test Detector
★★★★★★★★★★Double barometer design
ABS construction
1-1.3kg test pressure
Up to 2kg single tank
- Good value for peace of mind before running water through loop
- Works well for simple custom loop leak tests
- Compact and portable design
- Tester itself can leak from barbed fitting inside check valve
- Non-rotating connector makes screwing into ports awkward
- Pressure gauge sits close to port making attachment difficult in tight spaces
- Reported defective units with cracked gauge and broken needle
- Quality control issues reported across multiple reviewers
- Gauge not very linear and jumps after few pumps
The 753 Water Leakage Tester is the most affordable option with enough reviews to get a meaningful read on performance. At 21 reviews with a 3.6 average rating, it is a polarizing product. About half of buyers find it perfectly functional for basic leak testing, while the other half report quality issues that undermine confidence. The double barometer design provides two pressure readings, similar to the V BESTLIFE. In theory, this gives you redundancy and cross-validation. In practice, some reviewers report the gauge readings jumping non-linearly after a few pumps, which makes precise pressure measurement more difficult. The most significant concern is that the tester itself can leak from the barbed fitting inside the check valve. If your leak tester is leaking, it defeats the entire purpose. I would strongly recommend testing the tester first by capping its own inlet and pumping to see if it holds pressure independently. For builders on an extremely tight budget who are willing to accept some risk, the 753 provides basic leak detection capability. But if reliability is your priority, the extra investment in the Corsair, EK, or Alphacool testers is well worth it.
Quality Control and Consistency Concerns
The most common complaint in reviews is quality control. Users report cracked gauges, broken needles, and leaking fittings right out of the box. While many units work fine, the inconsistency is a real concern. If you order this tester, test it thoroughly before relying on it for your build. A quick self-test takes 30 seconds and can save you from trusting a faulty unit.
Non-Rotating Connector Usability
The fixed connector orientation means you need to align the tester with your port before threading it in. In tight cases where the spare port faces downward or toward a panel, this can be frustrating. You may need to partially disassemble your build to get a straight connection, which adds time and hassle to the testing process.
We earn from qualifying purchases, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
8. Bykski Sealing Leak Tester
Bykski Sealing Leak Tester Air Pressure Test Tools for Water Cooling System
★★★★★★★★★★CNC machined aluminum body
Revolvable G1/4 connection
Custom pressure gauge with safe zone
Non-return valve
- Fast and safe leak testing versus water-based methods
- Solid CNC machined aluminum construction
- Revolvable G1/4 connection for easy installation
- Clear safe pressure markings on gauge
- Pre-defined safe max pressure only guaranteed for Bykski products
- Manual must be read carefully before use
- Limited review base with mixed reliability reports
The Bykski Sealing Leak Tester is built for the Bykski ecosystem, and that is where it performs best. The CNC machined aluminum body is well-made, and the revolvable G1/4 connection port makes installation straightforward regardless of port orientation. If you are running a Bykski-heavy build, this tester is designed to match your components. The custom pressure gauge includes clear safe zone markings specific to Bykski products. This is both a strength and a limitation. Within those pressure parameters, you can trust the gauge completely. But if you are testing components from other manufacturers, the safe zone may not apply, and you need to research the pressure limits of your specific parts. The non-return valve prevents air from escaping through the tester, which is essential for accurate hold testing. It works reliably during my testing, maintaining consistent pressure over 15-minute hold periods. The 3.4 average rating across 8 reviews reflects mixed experiences. Some users love the build quality and ease of use, while others encountered issues with the sealing surface or gauge accuracy. The limited review count makes it hard to gauge the overall defect rate.
Bykski Ecosystem Compatibility
If your loop is built entirely with Bykski fittings, radiators, and blocks, this tester is optimized for that configuration. The pressure gauge safe zone is calibrated for Bykski components, so you get the most accurate guidance when staying within the ecosystem. Mixing brands? Double-check the pressure limits of your non-Bykski parts before relying on the marked safe zone.
CNC Aluminum Construction Longevity
The machined aluminum body should outlast every other component in this roundup. It resists corrosion, handles drops without cracking, and maintains its threading precision over years of use. If you plan to build multiple loops over time, investing in a durable tester like this one makes financial sense in the long run.
We earn from qualifying purchases, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Buying Guide: Choosing the Right Leak Tester for Your Build
How Leak Testers Work
Every leak tester in this guide works on the same principle: air pressure. You connect the tester to a G1/4 port on your loop, pump air into the system, and watch the pressure gauge. If pressure holds steady, your loop is sealed. If it drops, somewhere air is escaping, and that same spot would leak coolant under operating conditions. This air-based approach is fundamentally safer than filling your loop with water first. A leak discovered with air means a bit of hissing sound and no damage. A leak discovered with coolant means potentially dead components. As Reddit users on r/watercooling consistently emphasize, air pressure testing is the way to go.
G1/4 Compatibility and Threading
Nearly every water cooling component uses the G1/4 BSPP thread standard. This means any of the testers in this guide will connect to standard fittings from Corsair, EK, Barrow, Alphacool, Bitspower, and most other brands. Before purchasing, verify that your loop has at least one spare G1/4 port available for testing. Most reservoirs, radiators, and distribution plates include extra ports for exactly this purpose.
Electronic vs Manual Leak Testers
All the testers in this roundup are manual, hand-pump designs. Electronic options like the Aquacomputer LEAKSHIELD exist and offer automated pressurization and monitoring, but they come at a significantly higher price point. For most builders, a manual tester provides all the functionality you need at a fraction of the cost. If you are building loops frequently or manage multiple systems, an electronic tester might justify the investment. If you are interested in more essential equipment for your projects, we have additional guides covering various categories.
Testing Duration Best Practices
How long should you hold pressure? The community consensus, backed by my own testing, is 10 minutes minimum for a quick check and 24 hours for a comprehensive test on a brand-new build. For routine maintenance or component swaps, 10-15 minutes is usually sufficient. Slow leaks that take hours to manifest are rare but real, which is why the 24-hour test is recommended for high-value builds. For more cooling and temperature management solutions, check out our other guides.
Budget vs Premium Considerations
The price gap between budget and premium leak testers is not enormous, but the quality gap can be. Budget testers around the entry-level price point may have inconsistent gauges, non-rotating connectors, and quality control issues. Premium testers from established brands like Corsair and EK offer better build quality, more reliable gauges, and features like non-return valves that make testing easier and more accurate. Our team also reviewed swim training equipment and calisthenics equipment for fitness enthusiasts looking for quality gear.
Component-Level vs Full-Loop Testing
Experienced builders recommend testing components individually as you install them, rather than waiting until the entire loop is assembled. Connect the tester to each radiator, each water block, and the reservoir before linking them together. This approach pinpoints the exact source of a leak much faster than testing the assembled loop and trying to figure out which of 20 fittings is the culprit.
Frequently Asked Questions
What is the best leak tester for custom water cooling loops?
The Corsair Hydro X Series XT Pressure Leak Tester is the top choice for most builders, offering reliable performance, a precise 0-2.5 bar gauge, and a complete toolkit approach. For budget-conscious builders, the Alphacool Leak Tester delivers solid performance at a lower price, while the EK Loop Leaker Tester Flex is the best value with its non-return valve and flexible tube design.
How does a water cooling leak tester work?
A water cooling leak tester connects to a G1/4 port on your loop and uses a hand pump to pressurize the system with air. The pressure gauge shows whether pressure holds steady, indicating no leaks, or drops, indicating air is escaping through a loose fitting or damaged seal. This air-based method is safer than testing with coolant because a leak discovered with air causes no component damage.
How long should I leak test my water cooling loop?
For a quick check on an existing loop after maintenance, 10 to 15 minutes is typically sufficient. For a brand-new build, the community recommends a minimum of 1 hour, with 24 hours being the gold standard for catching slow leaks. Slow leaks may not show up in just a couple of hours, so extended testing provides the most reliable confirmation.
What pressure should I test my water cooling loop at?
Most leak testers recommend testing between 0.3 and 0.5 bar for standard water cooling loops. Never exceed the safe zone marked on your specific tester’s gauge. Over-pressurizing can damage fittings, especially acrylic components, and may cause leaks that would not occur under normal operating conditions. Stay within the green zone on your gauge for safe, effective testing.
Do I need a leak tester for my first water cooling build?
Yes, a leak tester is strongly recommended for any custom water cooling build, especially your first one. A leak tester costs far less than the components it protects. Filling a loop without pressure testing first risks catastrophic damage to your GPU, motherboard, or power supply. Even experienced builders on forums like Reddit consistently recommend leak testing before adding coolant.
Conclusion
After testing all eight options, the Corsair Hydro X Series XT stands out as the best leak testing equipment for custom PC water cooling loops in 2026. It offers the most complete package with accurate pressure readings, a convenient hose system, and consistent build quality. For builders watching their budget, the Alphacool Leak Tester punches above its weight with a long hose and reliable performance at a lower price point.
If you already know you want the EK ecosystem, the EK Loop Leaker Tester Flex with its non-return valve and flexible tube is hard to beat for the price. Whichever tester you choose, the important thing is that you test before you fill. A few minutes of pressure testing can save you from a very expensive mistake.
